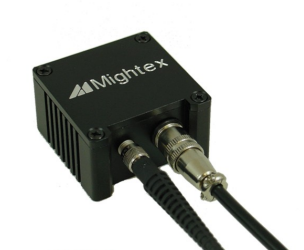

产品名称:FCS-光纤耦合光遗传学光源
产品型号: FCS
产品品牌: Mightex
 光纤耦合、单色LED
(型号:BLS-FCS-XXXX-000)

BioLED光学头:  光纤耦合、单色LED
Mightex的BLS系列BioLED光源是模块化的、应用于光遗传学,萤光激发和其它生物光学的完全可定制的交钥匙解决方案。在光遗传学实验中需要精确定时的、高强度的光脉冲以激活光敏感 通道(channelrhodopsins)(CHR  2,CHR  1等)和盐细菌视紫红质(halorhodopsins)(NpHR),以激发和抑制神经元。为了满足这些要求,Mightex开发出了特有的“IntelliPulsing”技术以允许BLS-系列光源在脉冲模式下的输出功率明显比在CW模式下LED的额定功率更高。
Mightex的BLS-系列光纤耦合LED光源采用了最新的高功率LED技术和独特的耦合元件以达到光输出功率。与BioLED光源控制器连接后,这些LED光源可应用于包括光遗传学和其它生物光子学的广泛领域。

光性能规格

波长代码
(xxxx)
描述
峰值波长 (nm)
辐射通量
CW 模式

IntelliPulsing 模式

0000
Cool White
5500K
3.2mW
6.5mW
0001
Warm White
3400K
3.2mW
6.5mW
0240
Deep UV
240
10µW
20µW
0255
Deep UV
255
45µW
90µW
0260
Deep UV
260
45µW
90µW
0275
Deep UV
275
90µW
180µW
0280
Deep UV
280
90µW
180µW
0285
Deep UV
285
90µW
180µW
0295
Deep UV
295
75µW
150µW
0310
Deep UV
310
90µW
180µW
0325
Deep UV
325
60µW
120µW
0340
Deep UV
340
60µW
120µW
0365
UV365nm
365
5.8mW
12mW
0385
UV385nm
385
5.8mW
12mW
0400
UV400nm
400
0.8mW
1.6mW
0400
UV400nm, 4W
400
6.5mW
13mW
0420
420nm
420
2.6mW
5.2mW
0455
Royal Blue
455
7.0mW
15mW
0470
Blue
470
8.0mW
16mW
0505
Cyan
505
3.5mW
7.0mW
0530
Green
530
2.0mW
4.0mW
0590
Amber
590
1.2mW
2.5mW
0617
Red-Orange
617
6.5mW
13mW
0625
Red
625
6.5mW
13mW
0656
Deep red
656
6.5mW
13mW
0657
Deep red
657
1.0mW
2.0mW
0680
Deep red
680
1.4mW
2.8mW
0740
NIR
740
1.5mW
3.0mW
0740
NIR 3W
740
3.6mW
7.2mW
0780
NIR
780
2.2mW
4.5mW
0850
NIR
850
4.0mW
8.0mW
0870
NIR
870
1.4mW
2.8mW
0940
NIR
940
4.0mW
8.0mW
注: * - 采用400µm芯0.22数字孔径(NA)光纤时测量值。输出光功率几乎与光纤芯面积和NA2成正比。如采用400µm直径0.39NA的光纤, 那么输出功率就是上表中所列数值的3.14倍。例如, 对于470nm的波长来说, 输出功率就是25mW(CW模式)和50mW("IntelliPulsing"模式, 取代上表中相应的8mW和16mW。

型号选择

Model Name
BLS-FCS-0000-000BLS High Power Fiber-Coupled LED Light Sources, Cool White, 5500K
BLS-FCS-0001-000BLS High Power Fiber-Coupled LED Light Sources, Warm White, 3400K
BLS-FCS-0240-000BLS High Power Fiber-Coupled LED Light Sources, 240nm UV
BLS-FCS-0255-000BLS High Power Fiber-Coupled LED Light Sources, 255nm UV
BLS-FCS-0260-000BLS High Power Fiber-Coupled LED Light Sources, 260nm UV
BLS-FCS-0275-000BLS High Power Fiber-Coupled LED Light Sources, 275nm UV
BLS-FCS-0280-000BLS High Power Fiber-Coupled LED Light Sources, 280nm UV
BLS-FCS-0285-000BLS High Power Fiber-Coupled LED Light Sources, 285nm UV
BLS-FCS-0295-000BLS High Power Fiber-Coupled LED Light Sources, 295nm UV
BLS-FCS-0310-000BLS High Power Fiber-Coupled LED Light Sources, 310nm UV
BLS-FCS-0325-000BLS High Power Fiber-Coupled LED Light Sources, 325nm UV
BLS-FCS-0340-000BLS High Power Fiber-Coupled LED Light Sources, 340nm UV
BLS-FCS-0365-000BLS High Power Fiber-Coupled LED Light Sources, 365nm UV
BLS-FCS-0385-000BLS High Power Fiber-Coupled LED Light Sources, 385nm UV
BLS-FCS-0400-000BLS High Power Fiber-Coupled LED Light Sources, 400nm UV
BLS-FCS-0400-001BLS High Power Fiber-Coupled LED Light Sources, 400nm UV, 4W
BLS-FCS-0420-000BLS High Power Fiber-Coupled LED Light Sources, 420nm
BLS-FCS-0455-000BLS High Power Fiber-Coupled LED Light Sources, 455nm Royal Blue
BLS-FCS-0470-000BLS High Power Fiber-Coupled LED Light Sources, 470nm Blue
BLS-FCS-0505-000BLS High Power Fiber-Coupled LED Light Sources, 505nm Cyan
BLS-FCS-0530-000BLS High Power Fiber-Coupled LED Light Sources, 530nm Green
BLS-FCS-0590-000BLS High Power Fiber-Coupled LED Light Sources, 590nm Amber
BLS-FCS-0617-000BLS High Power Fiber-Coupled LED Light Sources, 617nm Red-Orange
BLS-FCS-0625-000BLS High Power Fiber-Coupled LED Light Sources, 625nm Red
BLS-FCS-0656-000BLS High Power Fiber-Coupled LED Light Sources, 656nm Deep Red
BLS-FCS-0657-000BLS High Power Fiber-Coupled LED Light Sources, 657nm Deep Red
BLS-FCS-0680-000BLS High Power Fiber-Coupled LED Light Sources, 680nm Deep Red
BLS-FCS-0740-000BLS High Power Fiber-Coupled LED Light Sources, 740nm NIR
BLS-FCS-0740-001BLS High Power Fiber-Coupled LED Light Sources, 740nm NIR, 3W
BLS-FCS-0780-000BLS High Power Fiber-Coupled LED Light Sources, 780nm NIR
BLS-FCS-0850-000BLS High Power Fiber-Coupled LED Light Sources, 850nm NIR
BLS-FCS-0870-000BLS High Power Fiber-Coupled LED Light Sources, 870nm NIR
BLS-FCS-0940-000BLS High Power Fiber-Coupled LED Light Sources, 940nm NIR
