位置灵敏探测器PSD

简  述:
PSM系列位置传感模块。即插即用的精度。
品  牌:
美国 OnTrak
产品型号:
  • PSM1-2.5
  • PSM1-5
  • PSM1-10
  • PSM1-20
  • PSM1-30
  • PSM2-2
  • PSM2-3I
  • PSM2-4
  • PSM2-4Q
  • PSM2-5G
  • PSM2-10
  • PSM2-10Q
  • PSM2-10G
  • PSM2-20
  • PSM2-45
位置灵敏度传感器
PSM系列位置传感模块。即插即用的精度。

Model ActiveArea(mm) DetectorType WavelengthRange PackageType Typ.Resolution Typ.Linearity
PSM1-2.5 2.5x0.6 LinearSilicon 400-1100nm Compact 62.5nm 0.10%
PSM1-5 5.0x1.0 LinearSilicon 400-1100nm Compact 125nm 0.10%
PSM1-10 10.0x2.0 LinearSilicon 400-1100nm Standard 250nm 0.10%
PSM1-20 20.0x3.0 LinearSilicon 400-1100nm Standard 500nm 0.10%
PSM1-30 30.0x4.0 LinearSilicon 400-1100nm Standard 750nm 0.10%
PSM2-2 2.0x2.0 DuolateralSilicon 400-1100nm Compact 50nm 0.30%
PSM2-3I 3.0x3.0 QuadrantInGaAs 900-1700nm Compact 100nm N/A*
PSM2-4 4.0x4.0 DuolateralSilicon 400-1100nm Compact 100nm 0.30%
PSM2-4Q 4.0x4.0 QuadrantSilicon 400-1100nm Compact 100nm N/A*
PSM2-5G 5.0x5.0 PincushionTetralateral 800-1800nm Compact 5μm
Germanium
PSM2-10 10.0x10.0 DuolateralSilicon 400-1100nm Standard 250nm 0.30%
PSM2-10Q 9.0x9.0 QuadrantSilicon 400-1100nm Standard 100nm N/A*
PSM2-10G 10.0x10.0 PincushionTetralateral 800-1800nm Standard 5μm
Germanium
PSM2-20 20.0x20.0 DuolateralSilicon 400-1100nm Standard 500nm 0.30%
PSM2-45 45.0x45.0 DuolateralSilicon 400-1100nm Standard 1.25μm 0.30%

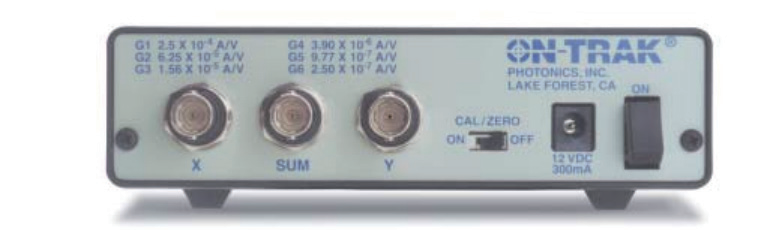

OT-301 放大器

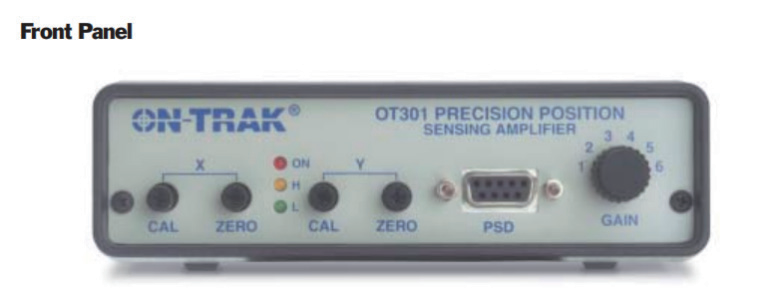

OT-301位置传感放大器是市场上处理任何位置传感检测器(PSD)的电流 输出最简单、最精确的方法。
6个增益设置可容纳输入电流范围从0.1µA到1.5mA,频率响应至15 kHz。一个方便的零位调整,使您可以电子移动零位到PSD上的相对位置。 CAL调整允许对绝对位置进行校准。

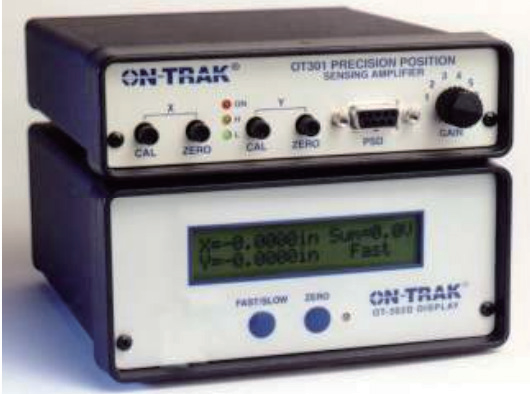

OT-302D 显示模块
OT-302D是ON-TRAK Photonics Inc.位置传感放大器的位置显示模块。 微处理器控制的显示器从位置传感放大器获得模拟电压输出,并将其转换为以毫米或英寸为单位的绝对位置。设备上显示X、Y位置输出和SUM输出LCD背光显示。

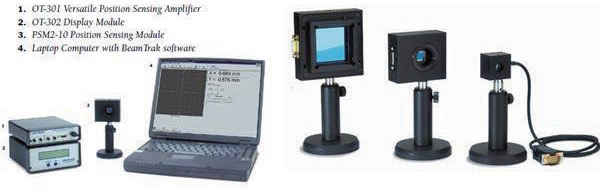

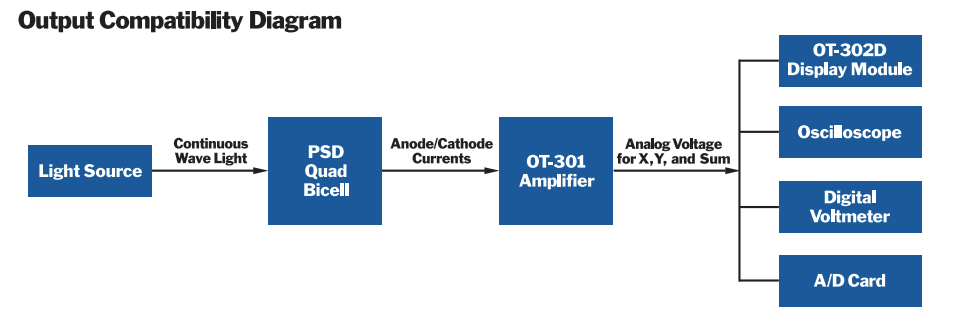

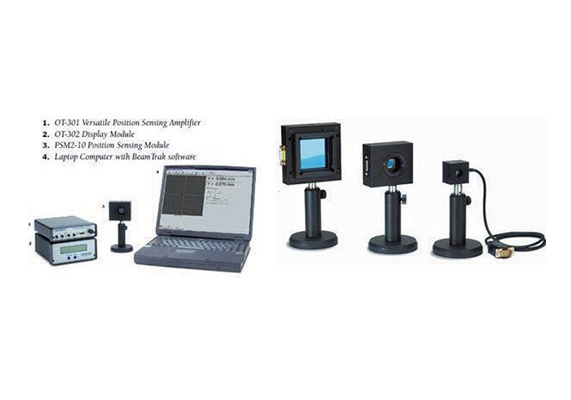

位置传感器、放大器、显示模块系统连接图如下
